Product image may vary by market, colour and configuration.

Asus 2016

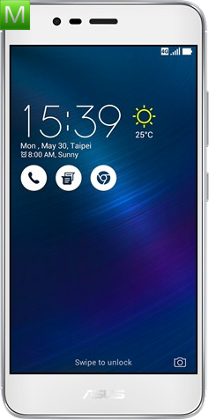

Asus ZenFone 3 Max ZC520TL

Name: Asus ZenFone 3 Max ZC520TL
Brand: Asus

4GPDF

3.4User rating

DisplayIPS TFT 16M colors 720 × 1280 pixels (5.20 inches) 282 ppi (pixels per inch)

ProcessorMediaTek MT6737

RAM2 GB, 3 GB

Storage16 GB, 32 GB

Camera13 Mpx, 4128x3096 px

BatteryLi-Ion 4100 mAh

Download English manual

View all available manual languages →

Specifications can vary by region, network and software version.

Device overview

Asus ZenFone 3 Max ZC520TL specifications

Explore the key features and detailed technical specifications available for the Asus ZenFone 3 Max ZC520TL.

Documentation

User manuals

Manual details4 languages

PDF

English manual

6.92 MB · 92 pages

Download PDF

PDF

Polish manual

PDF user guide

Download PDF

PDF

German manual

PDF user guide

Download PDF

PDF

French manual

PDF user guide

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Processor

MediaTek MT6737

4 cores · 1300 MHz · Mali-T720 MP2

Processor details

Specifications

General

6 specifications

Device type: Smartphone
Release date: July 1, 2016
Release year: 2016
Dimensions: 149,5 x 73,7 x 8,55 mm
Weight: 148 g
Colors: Titanium Grey, Glacier Silver, Sand Gold

Specifications

Display and design

4 specifications

Main display: IPS TFT 16M colors 720 × 1280 pixels (5.20 inches) 282 ppi (pixels per inch)
Display details: od5do699
Screen-to-body ratio: 67.7
Touchscreen: Yes

Specifications

Performance and memory

9 specifications

Processor: MediaTek MT6737
Clock speed: 1,25 GHz
CPU cores: 4
GPU: ARM Mali-T720 MP2 @650 MHz
RAM: 2 GB, 3 GB
Storage: 16 GB, 32 GB
Storage type: eMMC 5.0
Memory card: microSD, microSDHC, max 32 GB
AnTuTu score: 37146

Specifications

Cameras and video

4 specifications

Main camera: 13 Mpx, 4128x3096 px
Front camera: 5 Mpx, 2592x1944 px
Flash: Yes, LED
Video recording: 1920x1080, MPEG4, H.263, H.264 - 30 fps

Specifications

Battery and charging

4 specifications

Battery: Li-Ion 4100 mAh
Removable battery: No
Standby time: 2G: 720 h
Talk time: 2G: 20 h

Specifications

Networks and connectivity

20 specifications

Dual SIM: Yes
SIM type: Micro-SIM, Nano-SIM
2G bands: 850/900/1800/1900
3G bands: 850/900/1900/2100
LTE bands: FDD LTE: 2600, 2100, 1900, 1800, 1700, 900, 850, 800, 700TDD LTE: 2600, 2500, 2300, 1900
LTE: Yes
Wi‑Fi: Yes, v802.11 b/g/n
Wi‑Fi bands: 2.4 GHz
Wi‑Fi Direct: Yes
Wi‑Fi hotspot: Yes
Bluetooth: Yes, v4.0
USB: Yes, v2.0
GPRS: Yes
EDGE: Yes
HSDPA: Yes, 42,00 Mbit/s
HSUPA: Yes, 5,76 Mbit/s
HSPA: Yes
HSPA+: Yes
WAP: Yes, v2.0
XHTML: Yes
