Product image may vary by market, colour and configuration.

CAT 2017

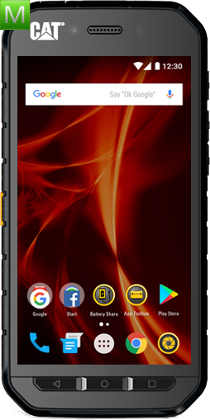

CAT S41 Dual SIM

Name: CAT S41 Dual SIM
Brand: CAT

4GPDFFast chargeResistant

DisplayIPS TFT 16M colors 1080 × 1920 pixels (5.00 inches) 441 ppi (pixels per inch)

ProcessorMediaTek Helio P20 MT6757

RAM3 GB

Storage32 GB

Camera13 Mpx

BatteryLi-Ion 5000 mAh

Check and open English manual

View listed manual languages →

Specifications can vary by region, network and software version. Only available catalogue values are shown; omitted fields are not confirmed.

Device overview

CAT S41 Dual SIM specifications

Explore the key features and detailed technical specifications available for the CAT S41 Dual SIM.

Documentation

User manuals

Manual details4 languages

PDF

English manual

1.27 MB · 40 pages

Check and open PDF

PDF

Polish manual

PDF user guide

Check and open PDF

PDF

German manual

PDF user guide

Check and open PDF

PDF

French manual

PDF user guide

Check and open PDF

The PDF source is checked when opened in a new tab. If the source is unavailable, you will see an error page rather than an unrelated download.

Specifications

General

5 specifications

Device type: Smartphone
Release year: 2017
Dimensions: 152 x 75 x 12,85 mm
Weight: 218 g
Colors: Black

Specifications

Display and design

5 specifications

Main display: IPS TFT 16M colors 1080 × 1920 pixels (5.00 inches) 441 ppi (pixels per inch)
Display details: od5do699
Screen-to-body ratio: 60.5
Touchscreen: Yes
Resistance: IP68, MIL-STD-810G

Specifications

Performance and memory

9 specifications

Processor: MediaTek Helio P20 MT6757
Clock speed: 2,30 GHz
CPU cores: 8
GPU: ARM Mali-T880 MP2 @900 MHz
RAM: 3 GB
RAM type: LPDDR4
Storage: 32 GB
Memory card: microSD, microSDHC, microSDXC (do 2 TB)
AnTuTu score: 56502

Specifications

Cameras and video

4 specifications

Main camera: 13 Mpx
Front camera: 8 Mpx
Flash: Yes, LED
Video recording: H.263, H.264, MPEG4 - 30 fps, 1920x1080 px

Specifications

Battery and charging

6 specifications

Battery: Li-Ion 5000 mAh
Removable battery: No
Fast charging: Pump Express 2.0
Max charging power: 18.0 W
Standby time: 3G: 1056 h
Talk time: 3G: 38 h

Specifications

Networks and connectivity

20 specifications

Dual SIM: Yes
SIM type: Nano-SIM
2G bands: 850/900/1800/1900
3G bands: 850/900/1700/1900/2100
LTE bands: 1, 2, 3, 5, 7, 8, 20 - EU 2, 4, 5, 7, 12, 13, 17, 66 - Americas 1, 2, 3, 4, 5, 7, 8, 28, 38, 39, 40, 41 - APAC/LATAM
LTE: Yes
NFC: Yes
Wi‑Fi: Yes, v802.11 b/g/n
Wi‑Fi bands: 2.4 i 5 GHz
Wi‑Fi hotspot: Yes
Bluetooth: Yes, v4.1
USB: Yes, v2.0 OTG
GPRS: Yes
EDGE: Yes
HSDPA: Yes, 42,20 Mbit/s
HSUPA: Yes, 5,76 Mbit/s
HSPA: Yes
HSPA+: Yes
WAP: Yes, v2.0
XHTML: Yes
