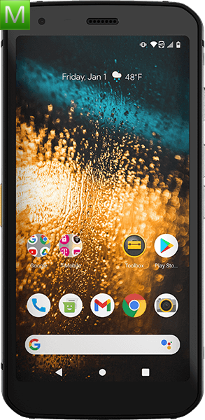

CAT S62

Device overview

CAT S62 specifications

Explore the key features and detailed technical specifications available for the CAT S62.

Documentation

User manuals

Manual details1 language

PDF

English manual

1.11 MB · 41 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

CPU

Processor

Qualcomm Snapdragon 660

8 cores · 2200 MHz · Adreno 512

Processor details

Specifications

General

4 specifications

Device type

Smartphone

Release year

2020

Dimensions

157 x 76,2 x 12,7 mm

Weight

248 g

Specifications

Display and design

5 specifications

Main display

IPS TFT 16M colors, 60 Hz, 1080 × 2160 pixels (5.70 inches) 424 ppi (pixels per inch)

Display details

od5do699

Screen-to-body ratio

70.1

Touchscreen

Yes

Resistance

IP68, IP69, MIL-STD-810H

Specifications

Performance and memory

7 specifications

Processor

Qualcomm Snapdragon 660

Clock speed

2,00 GHz

CPU cores

8

GPU

Adreno 512

RAM

4 GB

Storage

128 GB

Memory card

microSD, microSDHC, microSDXC (do 256 GB)

Specifications

Cameras and video

4 specifications

Main camera

48 Mpx, 8000x6000 px

Front camera

8 Mpx, 3264x2448 px

Flash

Yes, LED

Video recording

H264, H.265, MPEG4 - 30 fps

Specifications

Battery and charging

3 specifications

Battery

Li-Ion 4000 mAh

Fast charging

Quick Charge 4.0

Wireless charging

Qi

Specifications

Networks and connectivity

19 specifications

SIM type

Nano-SIM

2G bands

850/900/1800/1900

3G bands

850/900/1700/1900/2100

LTE bands

FDD LTE: 2600, 2100, 1900, 1800, 900, 850, 800, 700TDD LTE: 2600, 2500, 2300, 1900

LTE

Yes

NFC

Yes

Wi‑Fi

Yes, v802.11 a/b/g/n/ac

Wi‑Fi bands

2.4 GHz, 5 GHz

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v5.0

USB

Yes, v2.0 OTG Type-C

GPRS

Yes

EDGE

Yes

HSDPA

Yes, 42.20 Mbit/s

HSUPA

Yes, 5.76 Mbit/s

HSPA

Yes

HSPA+

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

8 specifications

Dictionary

Yes, XT9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Push-to-talk

Yes

Specifications

Navigation and sensors

11 specifications

GPS

Yes

GLONASS

Yes

BeiDou

Yes

Galileo

Yes

Fingerprint reader

Yes

Accelerometer

Yes

Proximity sensor

Yes

Light sensor

Yes

Magnetometer

Yes

Gyroscope

Yes

Gravity sensor

Yes

Specifications

Software and multimedia

5 specifications

Operating system

Android 10

OS version

Android

Audio player

Yes

FM radio

Yes

Polyphony

Yes

Specifications

Organizer and accessibility

8 specifications

Java

Yes, ART

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

Stopwatch

Yes

To-do list

Yes

Calculator

Yes
