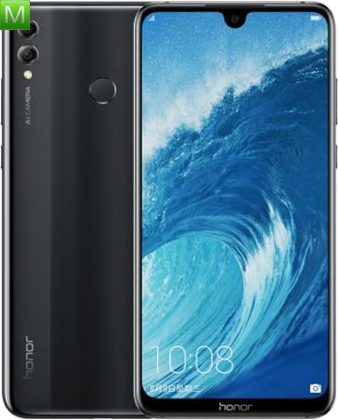

Honor 8X Max

Name: Honor 8X Max
Brand: Honor

Also known as ARE-AL00

4GPDFFast charge

3.2User rating

DisplayIPS TFT 16M colors 1080 × 2244 pixels (7.12 inches) 350 ppi (pixels per inch)

ProcessorQualcomm Snapdragon 636

RAM4 GB, 6 GB

Storage64 GB, 128 GB

Camera16 Mpx, 4608x3456 px

BatteryLi-Po 5000 mAh

Download English manual

View all available manual languages →

Specifications can vary by region, network and software version.

Device overview

Honor 8X Max specifications

Explore the key features and detailed technical specifications available for the Honor 8X Max.

Documentation

User manuals

Manual details1 language

PDF

English manual

9.61 MB · 89 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Processor

Qualcomm Snapdragon 636

8 cores · 1800 MHz · Adreno 509

Processor details

Specifications

General

5 specifications

Device type: Smartphone
Release year: 2018
Dimensions: 177,57 x 86,24 x 8,13 mm
Weight: 210 g
Colors: Black, Blue, Red

Specifications

Display and design

4 specifications

Main display: IPS TFT 16M colors 1080 × 2244 pixels (7.12 inches) 350 ppi (pixels per inch)
Display details: od7
Screen-to-body ratio: 83.5
Touchscreen: Yes

Specifications

Performance and memory

8 specifications

Processor: Qualcomm Snapdragon 636
Clock speed: 1,80 GHz
CPU cores: 8
GPU: Adreno 509
RAM: 4 GB, 6 GB
Storage: 64 GB, 128 GB
Storage type: eMMC 5.1
Memory card: microSD, microSDHC, microSDXC (do 256 GB)

Specifications

Cameras and video

4 specifications

Main camera: 16 Mpx, 4608x3456 px
Front camera: 8 Mpx, 3264x2448 px
Flash: Yes, LED
Video recording: H.263, H.264, MPEG4 - 30 fps, 1920x1080 px

Specifications

Battery and charging

6 specifications

Battery: Li-Po 5000 mAh
Removable battery: No
Fast charging: Yes
Max charging power: 18.0W
Standby time: 3G: 510 h
Talk time: 3G: 33 h

Specifications

Networks and connectivity

20 specifications

Dual SIM: Yes
SIM type: Nano-SIM
2G bands: 850/900/1800/1900
3G bands: 850/900/1900/2100
LTE bands: 1, 3, 5, 7, 8, 20, 38, 40, 41 - Global 1, 3, 5, 8, 38, 39, 40, 41 - China
LTE: Yes
Wi‑Fi: Yes, v802.11 a/b/g/n/ac
Wi‑Fi bands: 2.4 i 5 GHz
Wi‑Fi Direct: Yes
Wi‑Fi hotspot: Yes
Bluetooth: Yes, v4.2 LE
USB: Yes, v2.0 OTG
GPRS: Yes
EDGE: Yes
HSDPA: Yes, 42.20 Mbit/s
HSUPA: Yes, 5.76 Mbit/s
HSPA: Yes
HSPA+: Yes
WAP: Yes, v2.0
XHTML: Yes
