English manual
4.61 MB · 108 pages
Product image may vary by market, colour and configuration.
HTC
2009

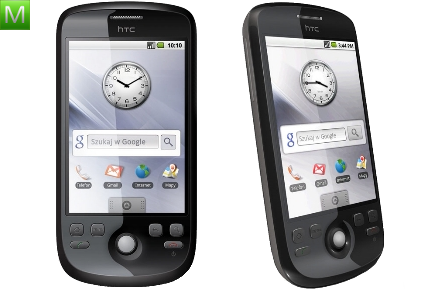

HTC Magic
Also known as A6161, Sapphire
PDF
DisplayTFT 320 × 480 pixels (3.20 inches) 180 ppi (pixels per inch)
ProcessorQualcomm MSM7201A
RAM288 MB
Storage512 MB
Camera3.2 Mpx, 2048x1536 px
BatteryLi-Ion 1340 mAh
Specifications can vary by region, network and software version.
Device overview
HTC Magic specifications
Explore the key features and detailed technical specifications available for the HTC Magic.
Documentation
User manuals
Manual details3 languages
PDF files are delivered through a protected Manual User Guide endpoint in a new tab.
Specifications
6 specificationsGeneral
- Device type
- Smartphone
- Release date
- February 1, 2009
- Release year
- 2009
- Dimensions
- 113 x 55 x 13,65 mm
- Weight
- 118,50 g
- Colors
- White, Black
Specifications
4 specificationsDisplay and design
- Main display
- TFT 320 × 480 pixels (3.20 inches) 180 ppi (pixels per inch)
- Display details
- od3do349
- Screen-to-body ratio
- 49.1
- Touchscreen
- Yes
Specifications
7 specificationsPerformance and memory
- Processor
- Qualcomm MSM7201A
- Clock speed
- 528 MHz
- CPU cores
- 1
- RAM
- 288 MB
- Storage
- 512 MB
- Memory card
- microSD, microSDHC
- Memory card included
- Yes
Specifications
2 specificationsCameras and video
- Main camera
- 3.2 Mpx, 2048x1536 px
- Video recording
- Yes
Specifications
4 specificationsBattery and charging
- Battery
- Li-Ion 1340 mAh
- Removable battery
- Yes
- Standby time
- 2G: 420 h 3G: 660 h
- Talk time
- 2G: 7,5 h 3G: 6,7 h
Specifications
14 specificationsNetworks and connectivity
- SIM type
- SIM (standard)
- 2G bands
- 850/900/1800/1900
- 3G bands
- 2100
- Wi‑Fi
- Yes, v802.11 b/g
- Wi‑Fi bands
- 2.4 GHz
- Bluetooth
- Yes, v2.0 EDR
- USB
- Yes, v2.0
- GPRS
- Yes
- EDGE
- Yes
- HSDPA
- Yes, 7,20 Mbit/s
- HSUPA
- Yes, 2,00 Mbit/s
- HSPA
- Yes
- WAP
- Yes
- XHTML
- Yes
Specifications
4 specificationsCalls and messaging
- MMS
- Yes
- Speakerphone
- Yes
- Call forwarding
- Yes
- Email client
- Yes
Specifications
5 specificationsSoftware and multimedia
- Operating system
- Android 1.5 CupCake
- OS version
- Android
- Audio player
- Yes
- Audio jack
- 3.5 mm
- Polyphony
- Yes
Specifications
7 specificationsOrganizer and accessibility
- Java
- Yes, Dalvik
- Calendar
- Yes
- Clock
- Yes
- Organizer
- Yes
- Alarm
- Yes
- To-do list
- Yes
- Calculator
- Yes
Specifications
2 specificationsSafety and commercial data
- Head SAR
- 0.78 W/kg
- Body SAR
- 0.97 W/kg
