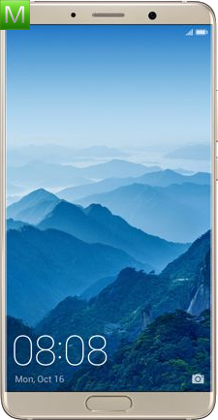

Huawei Mate 10

Name: Huawei Mate 10
Brand: Huawei

Also known as ALP-L09

4GPDFFast charge

3.1User rating

DisplayIPS TFT 16M colors 1440 × 2560 pixels (5.90 inches) 498 ppi (pixels per inch)

ProcessorHiSilicon Kirin 970

RAM4 GB, 6 GB

Storage64 GB, 128 GB

Camera20 Mpx, 5120x3840 px

BatteryLi-Po 4000 mAh

Download English manual

View all available manual languages →

Specifications can vary by region, network and software version.

Device overview

Huawei Mate 10 specifications

Explore the key features and detailed technical specifications available for the Huawei Mate 10.

Documentation

User manuals

Manual details1 language

PDF

English manual

22.26 MB · 151 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Processor

HiSilicon Kirin 970

8 cores · 2360 MHz · Mali G72 MP12

Processor details

Specifications

General

6 specifications

Device type: Smartphone
Release year: 2017
Dimensions: 150,5 x 77,8 x 8,2 mm
Weight: 186 g
Colors: Mocha Brown, Black, Champagne Gold, Pink Gold
Materials: Glass front (Gorilla Glass), glass back, aluminum frame

Specifications

Display and design

4 specifications

Main display: IPS TFT 16M colors 1440 × 2560 pixels (5.90 inches) 498 ppi (pixels per inch)
Display details: od5do699
Screen-to-body ratio: 82.0
Touchscreen: Yes

Specifications

Performance and memory

10 specifications

Processor: HiSilicon Kirin 970
Clock speed: 2,36 GHz
CPU cores: 8
GPU: ARM Mali-G72 MP12
RAM: 4 GB, 6 GB
RAM type: LPDDR4
Storage: 64 GB, 128 GB
Storage type: UFS 2.1
Memory card: microSD, microSDHC, microSDXC (do 256 GB)
AnTuTu score: 253600v8

Specifications

Cameras and video

4 specifications

Main camera: 20 Mpx, 5120x3840 px
Front camera: 8 Mpx, 2448x3264 px
Flash: Yes, LED
Video recording: H.263, H.264, H.265, MPEG4 - 30 fps, 3840x2160 px

Specifications

Battery and charging

6 specifications

Battery: Li-Po 4000 mAh
Removable battery: No
Fast charging: SuperCharge
Max charging power: 22.5W
Standby time: 3G: 528 h
Talk time: 3G: 25 h

Specifications

Networks and connectivity

20 specifications

2G bands: 850/900/1800/1900
3G bands: 850/900/1700/1900/2100
LTE bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 12, 17, 18, 19, 20, 26, 28, 34, 38, 39, 40 - ALP-L09, ALP-L29
LTE: Yes
NFC: Yes
Wi‑Fi: Yes, v802.11 a/b/g/n/ac
Wi‑Fi bands: 2.4 i 5 GHz
Wi‑Fi Direct: Yes
Wi‑Fi hotspot: Yes
Bluetooth: Yes, v4.2 LE
USB: Yes, v3.1 OTG Type-C
Infrared: Yes
GPRS: Yes
EDGE: Yes
HSDPA: Yes, 42,20 Mbit/s
HSUPA: Yes, 5,76 Mbit/s
HSPA: Yes
HSPA+: Yes
WAP: Yes, v2.0
XHTML: Yes
