Huawei 2020

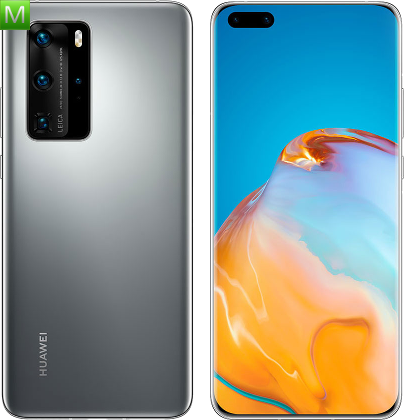

Huawei P40 Pro

Name: Huawei P40 Pro
Brand: Huawei

Also known as ELS-NX9, ELS-N04

5GPDFFast chargeResistant

3.6User rating

DisplayOLED 16M colors, 90 Hz, 1200 × 2640 pixels (6.58 inches) 441 ppi (pixels per inch)

ProcessorHiSilicon Kirin 990 5G

RAM8 GB

Storage256 GB

Camera50 Mpx, 8192x6144 px

BatteryLi-Po 4200 mAh

Download English manual

View all available manual languages →

Specifications can vary by region, network and software version.

Device overview

Huawei P40 Pro specifications

Explore the key features and detailed technical specifications available for the Huawei P40 Pro.

Documentation

User manuals

Manual details3 languages

PDF

English manual

22.54 MB · 215 pages

Download PDF

PDF

Polish manual

PDF user guide

Download PDF

PDF

German manual

PDF user guide

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Specifications

General

6 specifications

Device type: Smartphone
Release year: 2020
Dimensions: 158,2 x 72,6 x 8,95 mm
Weight: 209 g
Colors: Silver Frost, Blush Gold, Deep Sea Blue, Ice White, Black
Materials: Glass front, glass back, aluminum frame

Specifications

Display and design

5 specifications

Main display: OLED 16M colors, 90 Hz, 1200 × 2640 pixels (6.58 inches) 441 ppi (pixels per inch)
Display details: od5do699
Screen-to-body ratio: 91.6
Touchscreen: Yes
Resistance: IP68

Specifications

Performance and memory

10 specifications

Processor: HiSilicon Kirin 990 5G
Clock speed: 2,86 GHz
CPU cores: 8
GPU: ARM Mali-G76 MC16
RAM: 8 GB
RAM type: LPDDR4
Storage: 256 GB
Storage type: UFS 3.0
Memory card: Nano Memory (NM card)
AnTuTu score: 569700v9

Specifications

Cameras and video

4 specifications

Main camera: 50 Mpx, 8192x6144 px
Front camera: 32 Mpx, 6528x4896 px
Flash: Yes, LED
Video recording: H.264, H.265, MPEG4

Specifications

Battery and charging

6 specifications

Battery: Li-Po 4200 mAh
Removable battery: No
Fast charging: SuperCharge
Max charging power: 40.0 W
Wireless charging: Qi
Max wireless charging power: 27.0 W

Specifications

Networks and connectivity

25 specifications

Dual SIM: Yes
SIM type: Nano-SIM
2G bands: 850/900/1800/1900
3G bands: 850/900/1900/2100
LTE bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 12, 17, 18, 19, 20, 26, 28, 32, 34, 38, 39, 40, 41 - ELS-NX9 1, 2, 3, 4, 5, 6, 7, 8, 9, 12, 17, 18, 19, 20, 26, 28, 34, 38, 39, 40, 41, 66 - ELS-N04
5G bands: n1, n3, n7, n28, n38, n41, n77, n78, n79
LTE: Yes
5G: Yes
NFC: Yes
Wi‑Fi: Yes, v802.11 a/b/g/n/ac/ax
Wi‑Fi bands: 2.4 i 5 GHz
Wi‑Fi Direct: Yes
Wi‑Fi Display: Yes
Wi‑Fi hotspot: Yes
Bluetooth: Yes, v5.1 LE
USB: Yes, v3.1 OTG Type-C
Infrared: Yes
GPRS: Yes
EDGE: Yes
HSDPA: Yes, 42.20 Mbit/s
HSUPA: Yes, 5.76 Mbit/s
HSPA: Yes
HSPA+: Yes
WAP: Yes, v2.0
XHTML: Yes
