English manual
0.26 MB · 17 pages
Product image may vary by market, colour and configuration.
Lenovo

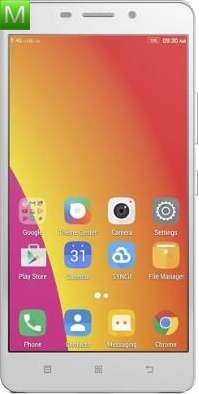

Lenovo A7700
4GPDF
DisplayIPS TFT 16M colors 720 × 1280 pixels (5.50 inches) 267 ppi (pixels per inch)
ProcessorMediaTek MT6735P
RAM2 GB
Storage16 GB
Camera8 Mpx
BatteryLi-Po 2900 mAh
Specifications can vary by region, network and software version.
Device overview
Lenovo A7700 specifications
Explore the key features and detailed technical specifications available for the Lenovo A7700.
Documentation
User manuals
Manual details1 language
Download PDF
PDF files are delivered through a protected Manual User Guide endpoint in a new tab.
Specifications
3 specificationsGeneral
- Device type
- Smartphone
- Dimensions
- 152 x 76,2 x 8,5 mm
- Weight
- 155 g
Specifications
4 specificationsDisplay and design
- Main display
- IPS TFT 16M colors 720 × 1280 pixels (5.50 inches) 267 ppi (pixels per inch)
- Display details
- od5do699
- Screen-to-body ratio
- 72.0
- Touchscreen
- Yes
Specifications
7 specificationsPerformance and memory
- Processor
- MediaTek MT6735P
- Clock speed
- 1.00 GHz
- CPU cores
- 4
- GPU
- ARM Mali-T720 @400 MHz
- RAM
- 2 GB
- Storage
- 16 GB
- Memory card
- microSD, microSDHC, microSDXC, max 32 GB
Specifications
4 specificationsCameras and video
- Main camera
- 8 Mpx
- Front camera
- 2 Mpx
- Flash
- Yes, LED
- Video recording
- H.263, H.264, MPEG4 - 30 fps, 1280x720
Specifications
3 specificationsBattery and charging
- Battery
- Li-Po 2900 mAh
- Standby time
- 3G: 240 h
- Talk time
- 3G: 24 h
Specifications
20 specificationsNetworks and connectivity
- Dual SIM
- Yes
- SIM type
- Micro-SIM
- 2G bands
- 850/900/1800/1900
- 3G bands
- 850/900/1900/2100
- LTE bands
- FDD LTE: 2600, 2100, 1800, 850TDD LTE: 2600, 2500, 2300, 1900
- LTE
- Yes
- Wi‑Fi
- Yes, v802.11 b/g/n
- Wi‑Fi bands
- 2.4 GHz
- Wi‑Fi Direct
- Yes
- Wi‑Fi hotspot
- Yes
- Bluetooth
- Yes, v4.0 LE
- USB
- Yes, v2.0 OTG
- GPRS
- Yes
- EDGE
- Yes
- HSDPA
- Yes, 42,20 Mbit/s
- HSUPA
- Yes, 5,76 Mbit/s
- HSPA
- Yes
- HSPA+
- Yes
- WAP
- Yes, v2.0
- XHTML
- Yes
Specifications
7 specificationsCalls and messaging
- Dictionary
- Yes, T9
- MMS
- Yes
- Speakerphone
- Yes
- Voice dialing
- Yes
- Call forwarding
- Yes
- Email client
- Yes
- RSS reader
- Yes
Specifications
7 specificationsSoftware and multimedia
- Operating system
- Android 6.0 Marshmallow
- OS version
- Android
- Interface
- Vibe UI
- Audio player
- Yes
- FM radio
- Yes
- Audio jack
- 3.5 mm
- Polyphony
- Yes
Specifications
8 specificationsOrganizer and accessibility
- Java
- Yes, ART
- Calendar
- Yes
- Clock
- Yes
- Voice recorder
- Yes
- Alarm
- Yes
- Stopwatch
- Yes
- To-do list
- Yes
- Calculator
- Yes
