English manual
1.15 MB
Product image may vary by market, colour and configuration.
Lenovo
2016

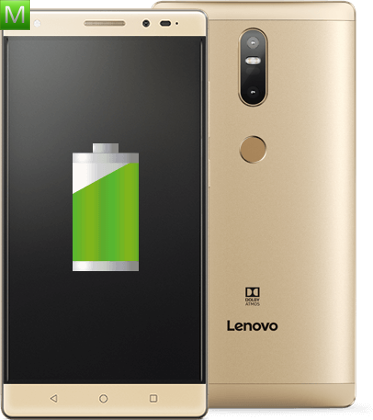

Lenovo Phab 2 Plus
Also known as Phab2 Plus, PB2-670M, PB2-670Y
4GPDF
DisplayIPS TFT 16M colors 1920 × 1080 pixels (6.40 inches) 344 ppi (pixels per inch)
ProcessorMediaTek MT8783
RAM3 GB
Storage32 GB
Camera13 Mpx, 4192x3104 px
BatteryLi-Ion 4050 mAh
Specifications can vary by region, network and software version.
Device overview
Lenovo Phab 2 Plus specifications
Explore the key features and detailed technical specifications available for the Lenovo Phab 2 Plus.
Documentation
User manuals
Manual details1 language
Download PDF
PDF files are delivered through a protected Manual User Guide endpoint in a new tab.
Specifications
4 specificationsGeneral
- Device type
- Smartphone
- Release year
- 2016
- Dimensions
- 173,89 x 88,3 x 9,6 mm
- Weight
- 218 g
Specifications
4 specificationsDisplay and design
- Main display
- IPS TFT 16M colors 1920 × 1080 pixels (6.40 inches) 344 ppi (pixels per inch)
- Display details
- od5do699
- Screen-to-body ratio
- 73.5
- Touchscreen
- Yes
Specifications
9 specificationsPerformance and memory
- Processor
- MediaTek MT8783
- Clock speed
- 1,30 GHz
- CPU cores
- 8
- GPU
- ARM Mali-T720 MP3
- RAM
- 3 GB
- RAM type
- LPDDR3
- Storage
- 32 GB
- Memory card
- microSD, microSDHC, microSDXC, max 128 GB
- AnTuTu score
- 36708
Specifications
4 specificationsCameras and video
- Main camera
- 13 Mpx, 4192x3104 px
- Front camera
- 8 Mpx, 3264x2448 px
- Flash
- Yes, LED
- Video recording
- H.263, H.264, MPEG4, 1920x1080
Specifications
4 specificationsBattery and charging
- Battery
- Li-Ion 4050 mAh
- Removable battery
- No
- Standby time
- 3G: 408 h
- Talk time
- 2G: 23 h
Specifications
18 specificationsNetworks and connectivity
- Dual SIM
- Yes
- SIM type
- Micro-SIM, Nano-SIM
- 2G bands
- 850/900/1800/1900
- 3G bands
- 850/900/1900/2100
- LTE
- Yes
- Wi‑Fi
- Yes, v802.11 a/b/g/n/ac
- Wi‑Fi bands
- 2.4 i 5 GHz
- Wi‑Fi hotspot
- Yes
- Bluetooth
- Yes, v4.0
- USB
- Yes, v2.0 OTG
- GPRS
- Yes
- EDGE
- Yes
- HSDPA
- Yes, 42,20 Mbit/s
- HSUPA
- Yes, 5,76 Mbit/s
- HSPA
- Yes
- HSPA+
- Yes
- WAP
- Yes, v2.0
- XHTML
- Yes
Specifications
7 specificationsCalls and messaging
- Dictionary
- Yes, T9
- MMS
- Yes
- Speakerphone
- Yes
- Voice dialing
- Yes
- Call forwarding
- Yes
- Email client
- Yes
- RSS reader
- Yes
Specifications
6 specificationsSoftware and multimedia
- Operating system
- Android 6.0 Marshmallow
- OS version
- Android
- Audio player
- Yes
- FM radio
- Yes
- Audio jack
- 3.5 mm
- Polyphony
- Yes
Specifications
8 specificationsOrganizer and accessibility
- Java
- Yes, ART
- Calendar
- Yes
- Clock
- Yes
- Voice recorder
- Yes
- Alarm
- Yes
- Stopwatch
- Yes
- To-do list
- Yes
- Calculator
- Yes
