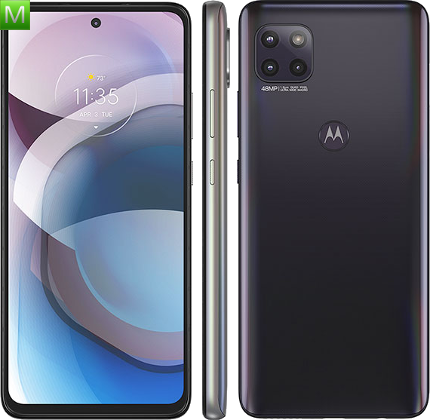

Motorola One 5G Ace

Device overview

Motorola One 5G Ace specifications

Explore the key features and detailed technical specifications available for the Motorola One 5G Ace.

Documentation

User manuals

Manual details1 language

PDF

English manual

1.68 MB

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

CPU

Processor

Qualcomm Snapdragon 750G

8 cores · 2200 MHz · Adreno 619

Processor details

Specifications

General

5 specifications

Device type

Smartphone

Release year

2021

Dimensions

166,1 x 76,1 x 9,9 mm

Weight

212 g

Colors

Volcanic Gray, Frosted Silver

Specifications

Display and design

5 specifications

Main display

LTPS TFT 16M colors, 60 Hz, 1080 × 2400 pixels (6.70 inches) 393 ppi (pixels per inch)

Display details

od5do699

Screen-to-body ratio

85.7

Touchscreen

Yes

Resistance

IP52

Specifications

Performance and memory

9 specifications

Processor

Qualcomm Snapdragon 750G

Clock speed

2,20 GHz

CPU cores

8

GPU

Adreno 619

RAM

4 GB, 6 GB

RAM type

LPDDR4

Storage

64 GB, 128 GB

Memory card

microSD, microSDHC, microSDXC (do 1 TB)

AnTuTu score

330000v8

Specifications

Cameras and video

4 specifications

Main camera

48 Mpx, 8000x6000 px

Front camera

16 Mpx

Flash

Yes, LED

Video recording

H.264, H.265, MPEG4 - 30 fps

Specifications

Battery and charging

4 specifications

Battery

Li-Ion 5000 mAh

Removable battery

No

Fast charging

TurboPower

Max charging power

15.0 W

Specifications

Networks and connectivity

22 specifications

SIM type

Nano-SIM

2G bands

850/900/1800/1900

3G bands

850/900/1700/1900/2100

LTE bands

1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 29, 30, 38, 39, 40, 41, 66, 71

5G bands

n2, n5, n25, n41, n66, n71

LTE

Yes

5G

Yes

NFC

Yes

Wi‑Fi

Yes, v802.11 a/b/g/n/ac

Wi‑Fi bands

2.4 i 5 GHz

Wi‑Fi Direct

Yes

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v5.1

USB

Yes, v2.0 OTG Type-C

GPRS

Yes, klasa 12

EDGE

Yes, klasa 12

HSDPA

Yes, 42.20 Mbit/s

HSUPA

Yes, 5.76 Mbit/s

HSPA

Yes

HSPA+

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

7 specifications

Dictionary

Yes, T9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Specifications

Navigation and sensors

11 specifications

GPS

Yes

GLONASS

Yes

Galileo

Yes

Fingerprint reader

Yes

Accelerometer

Yes

Proximity sensor

Yes

Light sensor

Yes

Magnetometer

Yes

Gyroscope

Yes

Barometer

Yes

Gravity sensor

Yes

Specifications

Software and multimedia

6 specifications

Operating system

Android 10

OS version

Android

Audio player

Yes

FM radio

Yes

Audio jack

3.5 mm

Polyphony

Yes

Specifications

Organizer and accessibility

8 specifications

Java

Yes, ART

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

Stopwatch

Yes

To-do list

Yes

Calculator

Yes

Specifications

Safety and commercial data

2 specifications

Head SAR

1.18 W/kg

Body SAR

1.43 W/kg
