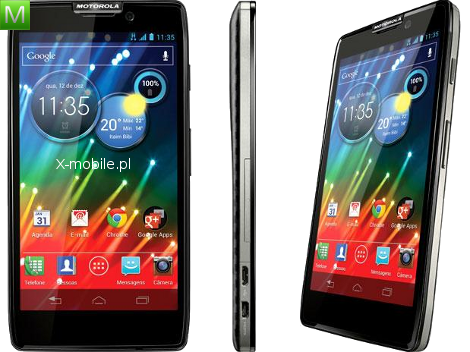

Motorola RAZR HD

Device overview

Motorola RAZR HD specifications

Explore the key features and detailed technical specifications available for the Motorola RAZR HD.

Documentation

User manuals

Manual details1 language

PDF

English manual

11.12 MB · 66 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Specifications

General

5 specifications

Device type

Smartphone

Release year

2012

Dimensions

131,9 x 67,9 x 8,4 mm

Weight

146 g

Colors

Black, White

Specifications

Display and design

4 specifications

Main display

Super AMOLED 16M colors 720 × 1280 pixels (4.70 inches) 312 ppi (pixels per inch)

Display details

od4do499

Screen-to-body ratio

68.0

Touchscreen

Yes

Specifications

Performance and memory

8 specifications

Processor

Qualcomm MSM8960

Clock speed

1,50 GHz

CPU cores

2

GPU

Adreno 225

RAM

1 GB

RAM type

LPDDR2

Storage

16 GB

Memory card

microSD, microSDHC, max 32 GB

Specifications

Cameras and video

4 specifications

Main camera

8 Mpx, 3264x2448 px

Front camera

1.3 Mpx, 1280x960 px

Flash

Yes, LED

Video recording

H.264, MPEG4

Specifications

Battery and charging

2 specifications

Battery

Li-Ion 2530 mAh

Removable battery

No

Specifications

Networks and connectivity

18 specifications

2G bands

850/900/1800/1900

3G bands

850/900/1900/2100

LTE

Yes

NFC

Yes

Wi‑Fi

Yes, v802.11 a/b/g/n

Wi‑Fi bands

2.4 GHz

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v4.0 LE

USB

Yes, v2.0

HDMI

Yes

DLNA

Yes

GPRS

Yes, klasa 12

EDGE

Yes, klasa 12

HSDPA

Yes

HSUPA

Yes

HSPA

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

7 specifications

Dictionary

Yes, T9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Specifications

Navigation and sensors

2 specifications

GPS

Yes

GLONASS

Yes

Specifications

Software and multimedia

6 specifications

Operating system

Android 4.0.4 Ice Cream Sandwich

OS version

Android

Audio player

Yes

FM radio

Yes

Audio jack

3.5 mm

Polyphony

Yes

Specifications

Organizer and accessibility

7 specifications

Java

Yes, Dalvik

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

To-do list

Yes

Calculator

Yes

Specifications

Safety and commercial data

2 specifications

Head SAR

0.78 W/kg

Body SAR

0.47 W/kg
