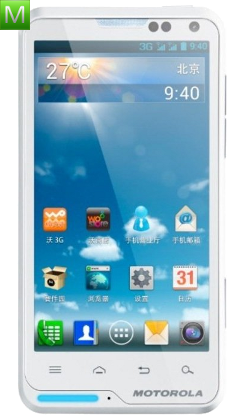

Motorola XT685

Device overview

Motorola XT685 specifications

Explore the key features and detailed technical specifications available for the Motorola XT685.

Documentation

User manuals

Manual details1 language

PDF

English manual

3.79 MB · 62 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Specifications

General

4 specifications

Device type

Smartphone

Release year

2012

Dimensions

117,7 x 60,5 x 9,85 mm

Weight

123,60 g

Specifications

Display and design

4 specifications

Main display

TFT 16M colors 480 × 854 pixels (4.00 inches) 245 ppi (pixels per inch)

Display details

od4do499

Screen-to-body ratio

61.9

Touchscreen

Yes

Specifications

Performance and memory

7 specifications

Processor

Qualcomm MSM7227A

Clock speed

1,00 GHz

CPU cores

1

GPU

Adreno 200 enhanced

RAM

512 MB

Storage

1 GB

Memory card

microSD, microSDHC, max 32 GB

Specifications

Cameras and video

4 specifications

Main camera

8 Mpx, 3264x2448 px

Front camera

0.3 Mpx, 640x480 px

Flash

Yes, LED

Video recording

H.263, H.264, MPEG4 - 30 fps, 800x480 px

Specifications

Battery and charging

1 specification

Battery

Li-Ion 1390 mAh

Specifications

Networks and connectivity

16 specifications

Dual SIM

Yes

2G bands

850/900/1800/1900

3G bands

850/900/2100

Wi‑Fi

Yes, v802.11 b/g/n

Wi‑Fi bands

2.4 GHz

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v3.0

USB

Yes, v2.0

DLNA

Yes

GPRS

Yes, klasa 12

EDGE

Yes, klasa 12

HSDPA

Yes

HSUPA

Yes

HSPA

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

7 specifications

Dictionary

Yes, XT9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Specifications

Navigation and sensors

5 specifications

GPS

Yes

Accelerometer

Yes

Proximity sensor

Yes

Light sensor

Yes

Magnetometer

Yes

Specifications

Software and multimedia

6 specifications

Operating system

Android 4.0 Ice Cream Sandwich

OS version

Android

Audio player

Yes

FM radio

Yes

Audio jack

3.5 mm

Polyphony

Yes, 64 głos.

Specifications

Organizer and accessibility

8 specifications

Java

Yes, Dalvik

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

Stopwatch

Yes

To-do list

Yes

Calculator

Yes
