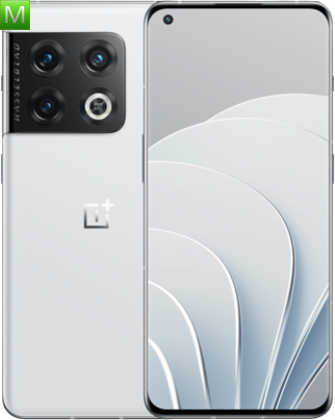

OnePlus 10 Pro Extreme Edition

Device overview

OnePlus 10 Pro Extreme Edition specifications

Explore the key features and detailed technical specifications available for the OnePlus 10 Pro Extreme Edition.

Documentation

User manuals

Manual details1 language

PDF

English manual

6.46 MB · 126 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

CPU

Processor

Qualcomm Snapdragon 8 Gen 1

8 cores · 3000 MHz · Adreno 730

Processor details

Specifications

General

4 specifications

Device type

Smartphone

Release year

2022

Dimensions

163 x 73,8 x 8,55 mm

Weight

200,50 g

Specifications

Display and design

4 specifications

Main display

AMOLED 16M colors, 120 Hz, 1440 × 3216 pixels (6.70 inches) 526 ppi (pixels per inch)

Display details

od5do699

Screen-to-body ratio

89.8

Touchscreen

Yes

Specifications

Performance and memory

5 specifications

Processor

Qualcomm Snapdragon 8 Gen 1

Clock speed

3.00 GHz

GPU

Adreno 730

RAM

12 GB

Storage

512 GB

Specifications

Cameras and video

4 specifications

Main camera

48 Mpx, 8000x6000 px

Front camera

32 Mpx

Flash

Yes, LED

Video recording

H.264, H.265, MPEG4 - 24 fps

Specifications

Battery and charging

2 specifications

Battery

Li-Ion 5000 mAh

Fast charging

Yes

Specifications

Networks and connectivity

24 specifications

Dual SIM

Yes

SIM type

Nano-SIM

2G bands

850/900/1800/1900

3G bands

850/900/1700/1900/2100

LTE bands

FDD LTE: 2600, 2100, 1900, 1800, 1700, 900, 850, 800, 700TDD LTE: 5200, 2600, 2300, 2100, 1900

5G bands

FDD 5G: 2100, 1800, 900, 850, 700TDD 5G: 4700, 3500, 2500, 2300

LTE

Yes

5G

Yes

NFC

Yes

Wi‑Fi

Yes, v802.11 a/b/g/n/ac/ax

Wi‑Fi bands

2.4 i 5 GHz

Wi‑Fi Direct

Yes

Wi‑Fi Display

Yes

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v5.2

USB

Yes, v3.1 OTG Type-C

GPRS

Yes

EDGE

Yes

HSDPA

Yes, 42.20 Mbit/s

HSUPA

Yes, 11.52 Mbit/s

HSPA

Yes

HSPA+

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

7 specifications

Dictionary

Yes, T9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Specifications

Navigation and sensors

11 specifications

GPS

Yes

GLONASS

Yes

BeiDou

Yes

Galileo

Yes

Fingerprint reader

Yes

Accelerometer

Yes

Proximity sensor

Yes

Light sensor

Yes

Magnetometer

Yes

Gyroscope

Yes

Gravity sensor

Yes

Specifications

Software and multimedia

5 specifications

Operating system

Android 12

OS version

Android

Interface

ColorOS 12.1

Audio player

Yes

Polyphony

Yes

Specifications

Organizer and accessibility

8 specifications

Java

Yes, ART

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

Stopwatch

Yes

To-do list

Yes

Calculator

Yes
