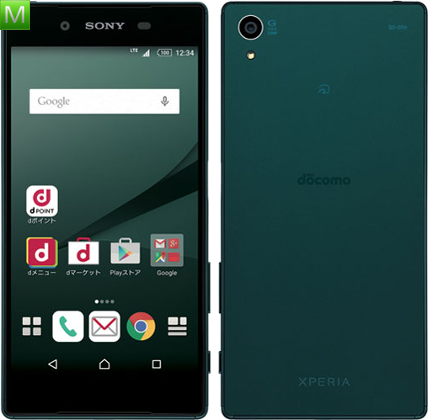

Sony Xperia Z5 SO-01H

Device overview

Sony Xperia Z5 SO-01H specifications

Explore the key features and detailed technical specifications available for the Sony Xperia Z5 SO-01H.

Documentation

User manuals

Manual details1 language

PDF

English manual

5.63 MB · 252 pages

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Specifications

General

4 specifications

Device type

Smartphone

Release year

2015

Dimensions

146 x 72 x 7,3 mm

Weight

154 g

Specifications

Display and design

5 specifications

Main display

TFT 16.7M colors 1080 × 1920 pixels (5.20 inches) 424 ppi (pixels per inch)

Display details

od5do699

Screen-to-body ratio

70.9

Touchscreen

Yes

Resistance

IP65, IP68

Specifications

Performance and memory

7 specifications

Processor

Qualcomm Snapdragon 810 8994

Clock speed

2.00 GHz

CPU cores

8

GPU

Adreno 430 @650 MHz

RAM

3 GB

Storage

32 GB

Memory card

microSD, microSDHC, microSDXC, max 200 GB

Specifications

Cameras and video

4 specifications

Main camera

23 Mpx, 5520x4140 px

Front camera

5 Mpx, 2592x1944 px

Flash

Yes, LED

Video recording

3840x2160 px, MPEG4, H.263, H.264, H.265 - 30 fps

Specifications

Battery and charging

4 specifications

Battery

Li-Ion 2900 mAh

Fast charging

Quick Charge 2.0

Standby time

2G: 410 h 3G: 350 h 4G: 440 h

Talk time

2G: 11,3 h 3G: 12,3 h 4G: 19,3 h

Specifications

Networks and connectivity

20 specifications

SIM type

Nano-SIM

2G bands

850/900/1800/1900

3G bands

850/2100

LTE bands

FDD LTE: 2500, 2100, 1700, 700TDD LTE: 2600, 1900

LTE

Yes

NFC

Yes

Wi‑Fi

Yes, v802.11 a/b/g/n/ac

Wi‑Fi bands

2.4 GHz, 5 GHz

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v4.1 LE

USB

Yes, v2.0 OTG

DLNA

Yes

GPRS

Yes

EDGE

Yes

HSDPA

Yes, 14,40 Mbit/s

HSUPA

Yes, 5,76 Mbit/s

HSPA

Yes

HSPA+

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

7 specifications

Dictionary

Yes, T9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Specifications

Navigation and sensors

10 specifications

GPS

Yes

GLONASS

Yes

BeiDou

Yes

Fingerprint reader

Yes

Accelerometer

Yes

Proximity sensor

Yes

Light sensor

Yes

Magnetometer

Yes

Gyroscope

Yes

Barometer

Yes

Specifications

Software and multimedia

6 specifications

Operating system

Android 5.1 Lollipop

OS version

Android

Audio player

Yes

FM radio

Yes

Audio jack

3.5 mm

Polyphony

Yes

Specifications

Organizer and accessibility

8 specifications

Java

Yes, ART

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

Stopwatch

Yes

To-do list

Yes

Calculator

Yes
