ManualUser Guide

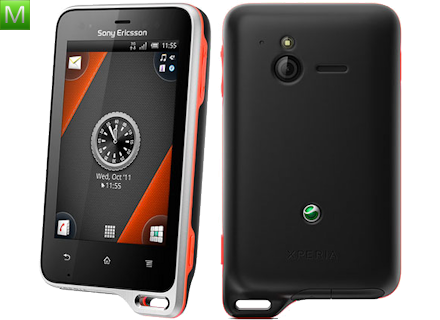

Sony Ericsson Xperia Active

Product image may vary by market, colour and configuration.

Sony Ericsson 2011

Sony Ericsson Xperia Active

Also known as ST17i, ST17a, Satsuma

PDFResistant
3.5User rating
DisplayTFT 16M colors 320 × 480 pixels (3.00 inches) 192 ppi (pixels per inch)
ProcessorQualcomm MSM8255
RAM512 MB
Storage320 MB
Camera5 Mpx, 2592x1944 px
BatteryLi-Ion 1200 mAh
Download English manual
View all available manual languages →

Specifications can vary by region, network and software version.

Device overview

Sony Ericsson Xperia Active specifications

Explore the key features and detailed technical specifications available for the Sony Ericsson Xperia Active.

Documentation

User manuals

Manual details5 languages

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Specifications

General

6 specifications
Device type
Smartphone
Release date
June 1, 2011
Release year
2011
Dimensions
92 x 55 x 16,5 mm
Weight
110,80 g
Colors
Orange/Black, White/Black
Specifications

Display and design

5 specifications
Main display
TFT 16M colors 320 × 480 pixels (3.00 inches) 192 ppi (pixels per inch)
Display details
od3do349
Screen-to-body ratio
53.0
Touchscreen
Yes
Resistance
IP67
Specifications

Performance and memory

9 specifications
Processor
Qualcomm MSM8255
Clock speed
1,00 GHz
CPU cores
1
GPU
Adreno 205
RAM
512 MB
RAM type
LPDDR2
Storage
320 MB
Memory card
microSD, microSDHC, max 32 GB
Memory card included
2 GB
Specifications

Cameras and video

3 specifications
Main camera
5 Mpx, 2592x1944 px
Flash
Yes, LED
Video recording
H.263, H.264, 1280x720 px
Specifications

Battery and charging

4 specifications
Battery
Li-Ion 1200 mAh
Removable battery
Yes
Standby time
2G: 351 h 3G: 335 h
Talk time
2G: 5,6 h 3G: 5,5 h
Specifications

Networks and connectivity

16 specifications
SIM type
Mini-SIM
2G bands
850/900/1800/1900
3G bands
900/2100
Wi‑Fi
Yes, v802.11 b/g/n
Wi‑Fi bands
2.4 GHz
Wi‑Fi hotspot
Yes
Bluetooth
Yes, v2.1 EDR
USB
Yes, v2.0
DLNA
Yes
GPRS
Yes
EDGE
Yes
HSDPA
Yes, 7,2 Mb/s
HSUPA
Yes, 5,76 Mbit/s
HSPA
Yes
WAP
Yes, v2.0
XHTML
Yes
Specifications

Calls and messaging

7 specifications
Dictionary
Yes, eZi
MMS
Yes
Speakerphone
Yes
Voice dialing
Yes
Call forwarding
Yes
Email client
Yes
RSS reader
Yes
Specifications

Software and multimedia

7 specifications
Operating system
Android 2.3 Gingerbread
OS version
Android
OS updates
Android 4.0
Audio player
Yes
FM radio
Yes
Audio jack
3.5 mm
Polyphony
Yes
Specifications

Organizer and accessibility

8 specifications
Java
Yes, Dalvik
Calendar
Yes
Clock
Yes
Voice recorder
Yes
Alarm
Yes
Stopwatch
Yes
To-do list
Yes
Calculator
Yes
Specifications

Safety and commercial data

2 specifications
Head SAR
1.23 W/kg
Body SAR
1.25 W/kg
