TP-Link
2019

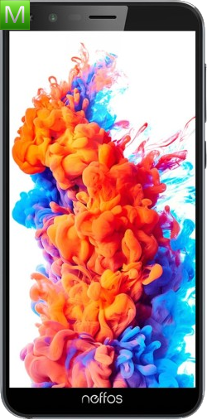

TP-Link Neffos C5 Plus
Also known as TP7031A, TP7031C
4GPDF
DisplayTFT 16M colors 480 × 960 pixels (5.34 inches) 201 ppi (pixels per inch)
ProcessorMediaTek MT6580M
RAM512 MB, 1 GB
Storage8 GB, 16 GB
Camera5 Mpx, 2592x1944 px
BatteryLi-Ion 2200 mAh
Specifications can vary by region, network and software version.
Device overview
TP-Link Neffos C5 Plus specifications
Explore the key features and detailed technical specifications available for the TP-Link Neffos C5 Plus.
Documentation
User manuals
Manual details1 language
Download PDF
PDF files are delivered through a protected Manual User Guide endpoint in a new tab.
Specifications
3 specificationsGeneral
- Release year
- 2019
- Dimensions
- 146,7 x 72 x 10,15 mm
- Weight
- 150 g
Specifications
4 specificationsDisplay and design
- Main display
- TFT 16M colors 480 × 960 pixels (5.34 inches) 201 ppi (pixels per inch)
- Display details
- od5do699
- Screen-to-body ratio
- 69.7
- Touchscreen
- Yes
Specifications
7 specificationsPerformance and memory
- Processor
- MediaTek MT6580M
- Clock speed
- 1,30 GHz
- CPU cores
- 4
- GPU
- ARM Mali-400 MP2 400 MHz
- RAM
- 512 MB, 1 GB
- Storage
- 8 GB, 16 GB
- Memory card
- microSD, microSDHC, microSDXC, max 64 GB
Specifications
4 specificationsCameras and video
- Main camera
- 5 Mpx, 2592x1944 px
- Front camera
- 2 Mpx, 1600x1200 px
- Flash
- Yes, LED
- Video recording
- H.263, H.264, H.265, MPEG4
Specifications
1 specificationBattery and charging
- Battery
- Li-Ion 2200 mAh
Specifications
17 specificationsNetworks and connectivity
- Dual SIM
- Yes
- SIM type
- Micro-SIM
- 2G bands
- 850/900/1800/1900
- 3G bands
- 850/900/1900/2100
- LTE
- Yes
- Wi‑Fi
- Yes, v802.11 b/g/n
- Wi‑Fi bands
- 2.4 GHz
- Wi‑Fi hotspot
- Yes
- Bluetooth
- Yes, v4.0
- USB
- Yes, v2.0
- GPRS
- Yes
- EDGE
- Yes
- HSDPA
- Yes
- HSUPA
- Yes
- HSPA
- Yes
- WAP
- Yes, v2.0
- XHTML
- Yes
Specifications
7 specificationsCalls and messaging
- Dictionary
- Yes, XT9
- MMS
- Yes
- Speakerphone
- Yes
- Voice dialing
- Yes
- Call forwarding
- Yes
- Email client
- Yes
- RSS reader
- Yes
Specifications
6 specificationsSoftware and multimedia
- Operating system
- Android 8.1 Oreo Go
- OS version
- Android
- Audio player
- Yes
- FM radio
- Yes
- Audio jack
- 3.5 mm
- Polyphony
- Yes
Specifications
8 specificationsOrganizer and accessibility
- Java
- Yes, ART
- Calendar
- Yes
- Clock
- Yes
- Voice recorder
- Yes
- Alarm
- Yes
- Stopwatch
- Yes
- To-do list
- Yes
- Calculator
- Yes
Specifications
2 specificationsSafety and commercial data
- Price from
- 48,55
- Price to
- 99,00
