English manual
0.60 MB
Product image may vary by market, colour and configuration.
ZTE
2016

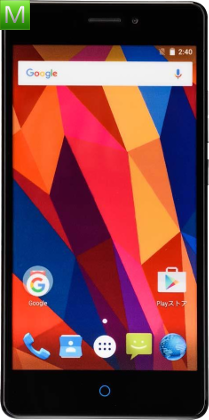

ZTE Blade V580
Also known as Blade V Plus
4GPDF
DisplayIPS TFT 16M colors 1080 × 1920 pixels (5.50 inches) 401 ppi (pixels per inch)
ProcessorMediaTek MT6735V
RAM2 GB
Storage16 GB
Camera13 Mpx, 4128x3096 px
BatteryLi-Ion 3000 mAh
Specifications can vary by region, network and software version.
Device overview
ZTE Blade V580 specifications
Explore the key features and detailed technical specifications available for the ZTE Blade V580.
Documentation
User manuals
Manual details1 language
Download PDF
PDF files are delivered through a protected Manual User Guide endpoint in a new tab.
Specifications
5 specificationsGeneral
- Device type
- Smartphone
- Release year
- 2016
- Dimensions
- 155,3 x 77,2 x 8,6 mm
- Weight
- 165 g
- Colors
- Silver
Specifications
4 specificationsDisplay and design
- Main display
- IPS TFT 16M colors 1080 × 1920 pixels (5.50 inches) 401 ppi (pixels per inch)
- Display details
- od5do699
- Screen-to-body ratio
- 69.6
- Touchscreen
- Yes
Specifications
8 specificationsPerformance and memory
- Processor
- MediaTek MT6735V
- Clock speed
- 1,30 GHz
- CPU cores
- 4
- GPU
- ARM Mali-T720 MP2 @450 MHz
- RAM
- 2 GB
- Storage
- 16 GB
- Storage type
- eMMC 4.5
- Memory card
- microSD, microSDHC, max 32 GB
Specifications
4 specificationsCameras and video
- Main camera
- 13 Mpx, 4128x3096 px
- Front camera
- 5 Mpx, 2592x1944 px
- Flash
- Yes, LED
- Video recording
- MPEG4, H.263, H.264
Specifications
4 specificationsBattery and charging
- Battery
- Li-Ion 3000 mAh
- Removable battery
- No
- Standby time
- 2G: 540 h 3G: 540 h 4G: 340 h
- Talk time
- 2G: 8 h 3G: 4,5 h 4G: 2,7 h
Specifications
19 specificationsNetworks and connectivity
- Dual SIM
- Yes
- SIM type
- Nano-SIM
- 2G bands
- 850/900/1800/1900
- 3G bands
- 850/900/1900/2100
- LTE bands
- 1, 3, 7, 28 1, 3, 7, 38, 39, 40, 41
- LTE
- Yes
- Wi‑Fi
- Yes, v802.11 b/g/n
- Wi‑Fi bands
- 2.4 GHz
- Wi‑Fi hotspot
- Yes
- Bluetooth
- Yes, v4.0 LE
- USB
- Yes, v2.0 OTG
- GPRS
- Yes
- EDGE
- Yes
- HSDPA
- Yes, 42,20 Mbit/s
- HSUPA
- Yes, 11,50 Mbit/s
- HSPA
- Yes
- HSPA+
- Yes
- WAP
- Yes, v2.0
- XHTML
- Yes
Specifications
7 specificationsCalls and messaging
- Dictionary
- Yes, XT9
- MMS
- Yes
- Speakerphone
- Yes
- Voice dialing
- Yes
- Call forwarding
- Yes
- Email client
- Yes
- RSS reader
- Yes
Specifications
6 specificationsSoftware and multimedia
- Operating system
- Android 5.1 Lollipop
- OS version
- Android
- Audio player
- Yes
- FM radio
- Yes
- Audio jack
- 3.5 mm
- Polyphony
- Yes
Specifications
8 specificationsOrganizer and accessibility
- Java
- Yes, ART
- Calendar
- Yes
- Clock
- Yes
- Voice recorder
- Yes
- Alarm
- Yes
- Stopwatch
- Yes
- To-do list
- Yes
- Calculator
- Yes
