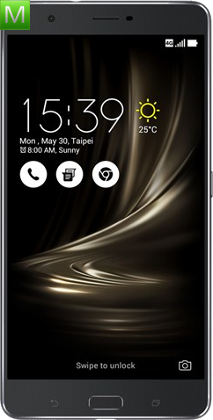

Asus Zenfone 3 Ultra ZU680KL

Device overview

Asus Zenfone 3 Ultra ZU680KL specifications

Explore the key features and detailed technical specifications available for the Asus Zenfone 3 Ultra ZU680KL.

Documentation

User manuals

Manual details2 languages

PDF

English manual

6.57 MB · 93 pages

Download PDF

PDF

German manual

PDF user guide

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Specifications

General

5 specifications

Device type

Smartphone

Release year

2016

Dimensions

186,4 x 93,9 x 6,8 mm

Weight

233 g

Colors

Glacier Silver, Titanium Gray, Metallic Pink

Specifications

Display and design

4 specifications

Main display

IPS TFT 16M colors 1080 × 1920 pixels (6.80 inches) 324 ppi (pixels per inch)

Display details

od5do699

Screen-to-body ratio

72.8

Touchscreen

Yes

Specifications

Performance and memory

8 specifications

Processor

Qualcomm Snapdragon 652 8976

Clock speed

1,80 GHz

CPU cores

8

GPU

Adreno 510

RAM

3 GB, 4 GB

Storage

32 GB, 64 GB, 128 GB

Storage type

eMMC 5.1

Memory card

microSD, microSDHC, microSDXC, max 200 GB

Specifications

Cameras and video

4 specifications

Main camera

23 Mpx, 5488x4112 px

Front camera

8 Mpx, 3264x2448 px

Flash

Yes, LED

Video recording

3840x2160, H.263, H.264, MPEG4

Specifications

Battery and charging

4 specifications

Battery

Li-Ion 4600 mAh

Removable battery

No

Fast charging

Quick Charge 3.0

Max charging power

18.0 W

Specifications

Networks and connectivity

19 specifications

Dual SIM

Yes

SIM type

Micro-SIM

2G bands

850/900/1800/1900

3G bands

850/900/1900/2100

LTE bands

1, 3, 5, 7, 8, 18, 19, 20, 26, 28, 38, 40, 41

LTE

Yes

Wi‑Fi

Yes, v802.11 a/b/g/n/ac

Wi‑Fi bands

2.4 i 5 GHz

Wi‑Fi Direct

Yes

Wi‑Fi hotspot

Yes

Bluetooth

Yes, v4.2

USB

Yes, v2.0 OTG Type-C

GPRS

Yes

EDGE

Yes

HSDPA

Yes, 42,20 Mbit/s

HSUPA

Yes, 5,76 Mbit/s

HSPA

Yes

WAP

Yes, v2.0

XHTML

Yes

Specifications

Calls and messaging

7 specifications

Dictionary

Yes, T9

MMS

Yes

Speakerphone

Yes

Voice dialing

Yes

Call forwarding

Yes

Email client

Yes

RSS reader

Yes

Specifications

Navigation and sensors

10 specifications

GPS

Yes

GLONASS

Yes

BeiDou

Yes

Fingerprint reader

Yes

Accelerometer

Yes

Proximity sensor

Yes

Light sensor

Yes

Magnetometer

Yes

Gyroscope

Yes

Hall sensor

Yes

Specifications

Software and multimedia

7 specifications

Operating system

Android 6.0 Marshmallow

OS version

Android

Interface

Zen UI 3.0

Audio player

Yes

FM radio

Yes

Audio jack

3.5 mm

Polyphony

Yes

Specifications

Organizer and accessibility

8 specifications

Java

Yes, ART

Calendar

Yes

Clock

Yes

Voice recorder

Yes

Alarm

Yes

Stopwatch

Yes

To-do list

Yes

Calculator

Yes
