Asus 2016

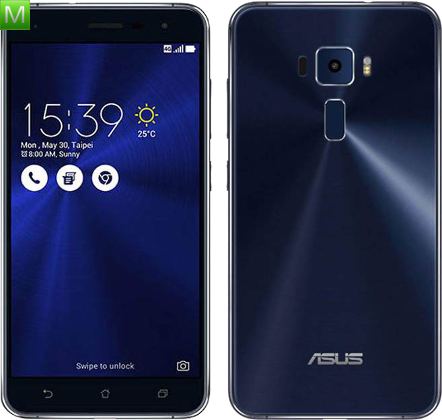

Asus ZenFone 3 ZE520KL

Name: Asus ZenFone 3 ZE520KL
Brand: Asus

4GPDF

3.7User rating

DisplayIPS TFT 16M colors 1080 × 1920 pixels (5.20 inches) 424 ppi (pixels per inch)

ProcessorQualcomm Snapdragon 625 8953

RAM3 GB, 4 GB

Storage32 GB, 64 GB, 128 GB

Camera16 Mpx, 5312x2988 px

BatteryLi-Ion 2650 mAh

Download English manual

View all available manual languages →

Specifications can vary by region, network and software version.

Device overview

Asus ZenFone 3 ZE520KL specifications

Explore the key features and detailed technical specifications available for the Asus ZenFone 3 ZE520KL.

Documentation

User manuals

Manual details4 languages

PDF

English manual

11.76 MB

Download PDF

PDF

Polish manual

PDF user guide

Download PDF

PDF

German manual

PDF user guide

Download PDF

PDF

French manual

PDF user guide

Download PDF

PDF files are delivered through a protected Manual User Guide endpoint in a new tab.

Processor

Qualcomm Snapdragon 625

8 cores · 2000 MHz · Adreno 506

Processor details

Specifications

General

5 specifications

Device type: Smartphone
Release year: 2016
Dimensions: 146,87 x 73,98 x 7,69 mm
Weight: 144 g
Colors: Sapphire Black, Moonlight White, Shimmer Gold

Specifications

Display and design

4 specifications

Main display: IPS TFT 16M colors 1080 × 1920 pixels (5.20 inches) 424 ppi (pixels per inch)
Display details: od5do699
Screen-to-body ratio: 68.6
Touchscreen: Yes

Specifications

Performance and memory

10 specifications

Processor: Qualcomm Snapdragon 625 8953
Clock speed: 2,00 GHz
CPU cores: 8
GPU: Adreno 506
RAM: 3 GB, 4 GB
RAM type: LPDDR3
Storage: 32 GB, 64 GB, 128 GB
Storage type: eMMC 5.1
Memory card: microSD, microSDHC, microSDXC (do 2 TB)
AnTuTu score: 62205v6

Specifications

Cameras and video

4 specifications

Main camera: 16 Mpx, 5312x2988 px
Front camera: 8 Mpx, 3264x2448 px
Flash: Yes, LED
Video recording: 3840x2160, H.263, H.264, MPEG4

Specifications

Battery and charging

2 specifications

Battery: Li-Ion 2650 mAh
Removable battery: No

Specifications

Networks and connectivity

20 specifications

Dual SIM: Yes
SIM type: Micro-SIM, Nano-SIM
2G bands: 850/900/1800/1900
3G bands: 850/900/1900/2100
LTE bands: 1, 2, 3, 5, 7, 8, 18, 19, 26, 28, 38, 39, 40, 41 - Taiwan 1, 3, 5, 8, 40 - India 1, 2, 3, 4, 5, 7, 8, 17, 28 - Brazil
LTE: Yes
Wi‑Fi: Yes, v802.11 b/g/n/ac
Wi‑Fi bands: 2.4 i 5 GHz
Wi‑Fi Direct: Yes
Wi‑Fi hotspot: Yes
Bluetooth: Yes, v4.2
USB: Yes, v2.0 OTG Type-C
GPRS: Yes
EDGE: Yes
HSDPA: Yes, 42,20 Mbit/s
HSUPA: Yes, 5,76 Mbit/s
HSPA: Yes
HSPA+: Yes
WAP: Yes, v2.0
XHTML: Yes
